60m³ WEIR TANK

Rain for Rent’s open top Weir Tanks come with over and under weirs for separation of oils or particulates.

The TUV certified tank can easily and safely be transported throughout Europe.

Our tanks are designed with operator safety in mind, project flexibility, and easy maintenance.

FEATURES & BENEFITS

Built-in staircase ensures proper protection for workers on every project with safe access to full length of the tank with no extra top handrails to setup
Easy access from the landing to the actuator valve to allow flow through in the middle chamber
Equipped with three level separation ports at front and rear as well as an oil skimmer port
Designed to allow for bidirectional flow
Solid walls provide true weir function hydraulics
Fixed top fill piping at the rear of the tank allows for easy top filling
Optional top fill plumbing at front of the tank
Close the top with the full slide top cover
V-sloped main floor and dual chamber manways for cleaning access
Mechanical locking system for safe on road transport
Refined pneumatically-actuated rear suspension system ensures safe operation when raising and lowering

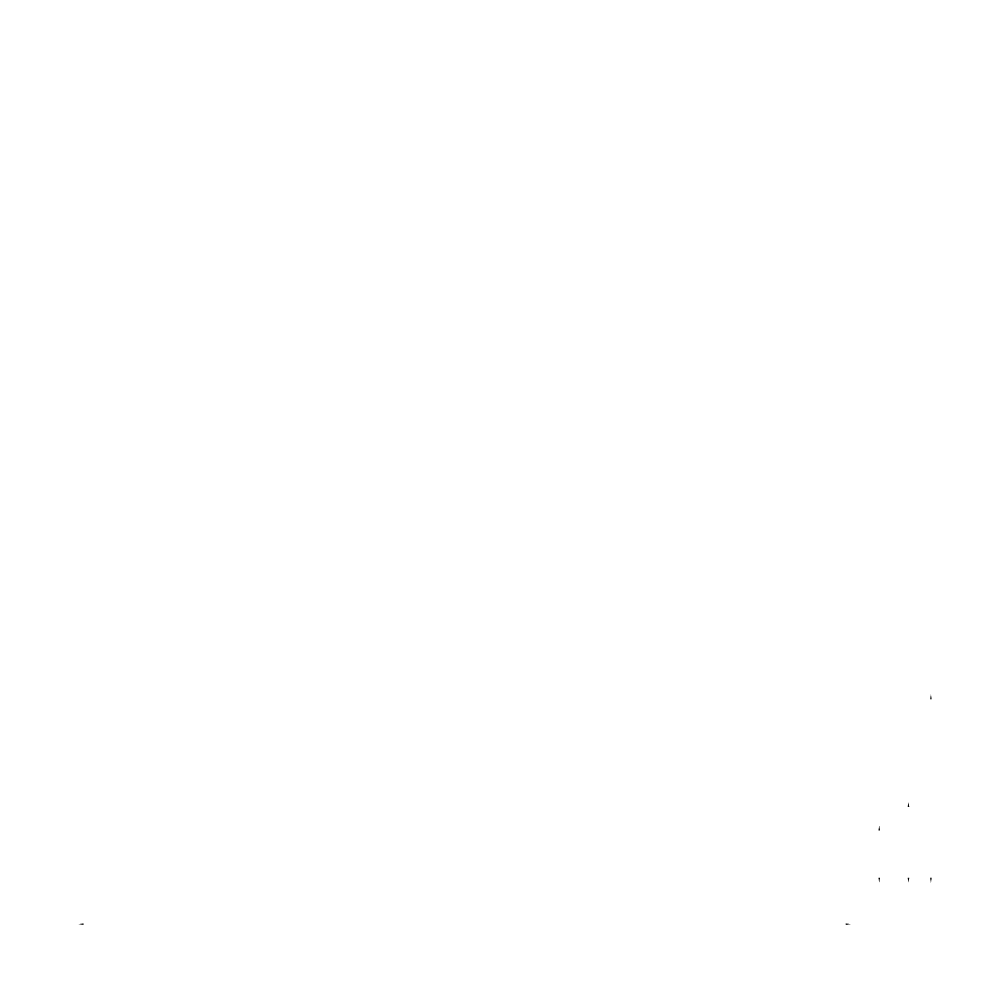

Dimensions & Construction
Footprint (when in service)	13.4 m x 3.8 m x 2.5 m
Capacity	60,400 litres (60.4 m³)
Optional Interior Coating	Chemical resistant phenolic epoxy (please call for specific chemical compatibility information)

Features & Accessories
Connections	6 x DN100 PN16 (3 x front wall – separations style 1 x front lower wall with valve – suction 2 x rear wall – fill/separations) 1 x DN200 PN16 (side wall/walkway platform – separations/ skimming)
Drain Valves	1x DN150 PN16 with valve (front) 1x DN100 PN16 with valve (rear)
Certification & Testing	Designed per DIN 6625-2:2013 guidelines and approved to hold liquids up to 1.6 S.G. Hydrostatic water during construction and rested during repairs and regular maintenance schedule
